HE Series Electronic Valve Actuators

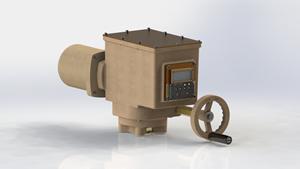

The HE is the newest addition to our line of electronic valve actuators, with higher torque than the NE. It is also quarter-turn and multi-turn capable.  The HE Navy-qualified actuators have the latest generation of electronics and are designed to meet the severe environments of the Navy. The main housing allows for a variety of motor sizes and applications.  The HE has an embedded processor, I/O Interface, and network interface that accommodates distributed autonomous valve control systems.  It (like the NE Series Electronic Valve Actuator) can be completely remotely programmed and set up and has the torque to operate most valves.

HE Electronic Valve Actuator Capabilities

  • Quarter-turn and multi-turn valve applications
  • Up to  20,000  in-lbs. torque for quarter-turn applications
  • Seventh generation electronics with electronically adjustable torque and position limits
  • Adjustable mechanical end stops
  • Local, remote station, or digital network control
  • Local operation by push-button or hand wheel
  • Non-intrusive local service and programming port
  • Externally programmable using accessory device
  • Folding spinner handle for rapid manual actuation through differential drive
  • Thermal sensor over-temperature controller
  •  440VAC three phase power supply

Environmental Specifications

  • Temperature:-20F to 150F per DOD-V-24657(SH)
  • Humidity: 100% humidity at 65° per MIL-STD-202
  • Submersion: To 15 meters per MIL-STD-108
  • Electronics :EMI per MIL-STD-461
  • Shock and Vibration: Per MIL-S-901D and MIL-STD-167-1
  • First Article: Per DOD-V-24657(SH)
Click to view HE Actuator Data Sheet

Contact Tri-Tec Manufacturing Today

Since we developed the first DOD-v-24657 compliant actuator in 1985, we have continued to develop and refine our electronic actuators. The HE electronic valve actuator can handle numerous communication protocols and is easily configurable. Contact us for more information on this advanced actuator or request a quote today.
